Description

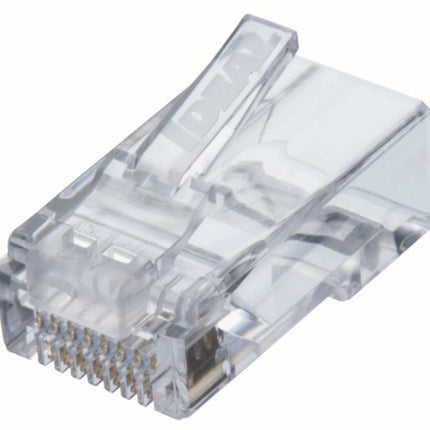

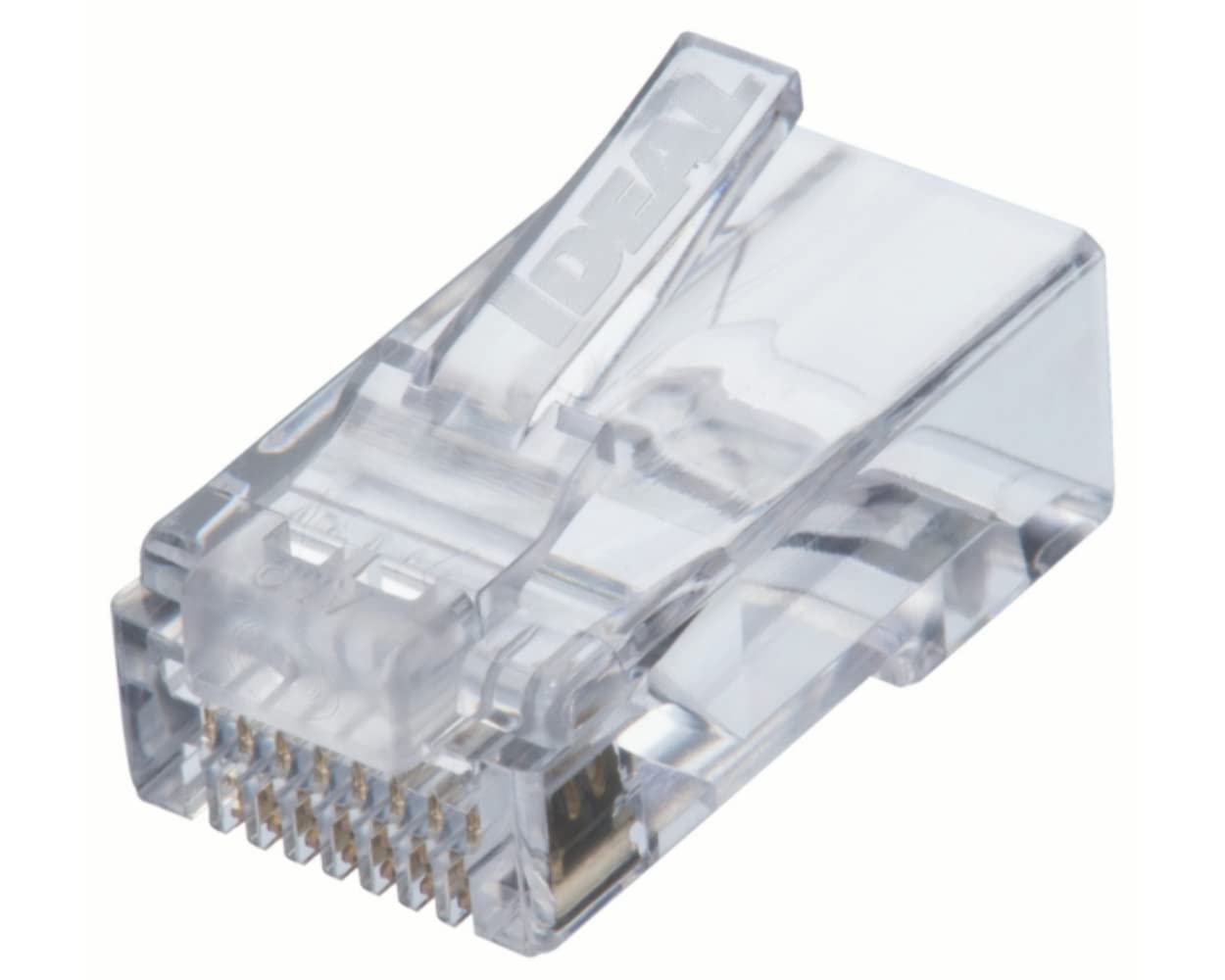

The open-end CAT-5E Feed-Thru RJ45 Mod Plugs (50 pk) from IDEAL offers several advantages over standard closed-end connectors. Conductor order can be verified prior to crimping. Conductors that feed-thru the connector are inserted or pulled into the connector to ensure that the twisted pairs are as close to the pin contacts as possible and that the jacket is seated beyond the primary strain relief for a secure connection. Conductors can be cut flush with the end face of the connector when used with the FT-45 Crimp Tool.
Features
8 position, 8 contact RJ-45 modular plug for CAT5e, 100O balanced twisted pair 250 MHz cables
Three prong contact design for use with solid or stranded 23-24 AWG insulated copper conductors up to 0.041 in. in diameter accepts outer jacket cable diameters of up to .270 in.
Flush cut of excess conductors minimzes inadvertent contact outside of the plug
Crimp with IDEAL FT-45 30-495 crimp tool
Single piece design 50 micro-inch gold plating on contact mating area for long term reliability in connectivity, even after hundreds of mating cycles
Color: No Color
Manufacturer: Ideal
Size: 50 Pack
Material Type: Plastic
