Description

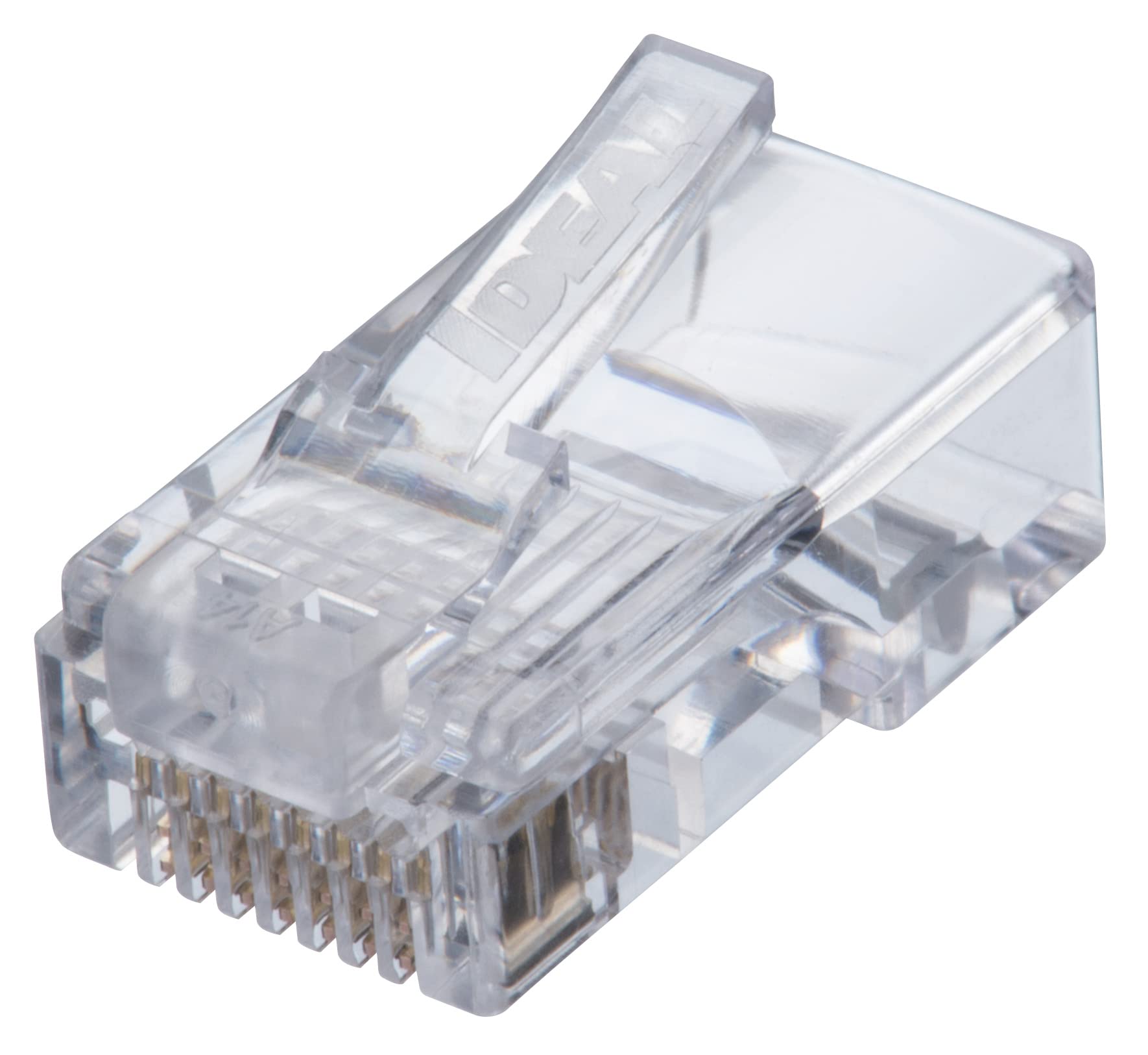

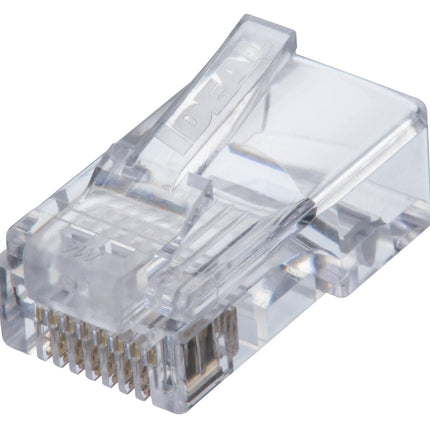

The NEW IDEAL Feed-Thru CAT5e 8P8C (eight position/eight contact) modular plug connector is the first feed-thru style connector and tool solution to offer a flush cut of the excess conductor to the face of the modular plug. A patent pending design enables conductors to be cut flush with the end face of the connector when used with the FT-45 tool (30-495). The flush cut eliminates inadvertent contact among adjacent conductors or with the mating jack. Conductor spacing is maintained for reliable performance in PoE and data applications.
Features
8 position, 8 contact RJ-45 modular plug for CAT5e, 100O balanced twisted pair 250 MHz cables
Three prong contact design for use with solid or stranded 23-24 AWG insulated copper conductors up to 0.041 in. in diameter accepts outer jacket cable diameters of up to .270 in.
Flush cut of excess conductors minimzes inadvertent contact outside of the plug
Eliminates wasted connectors due to incorrect assembly
Crimp with IDEAL FT-45 30-495 crimp tool
Color: No Color
Manufacturer: IDEAL INDUSTRIES
